Yüksek Yoğunluklu Tatil Köyleri ve Yaşlı Yaşamı için Çift Bölgeli Akıllı Sistemlere Sahip Sertifikalı İki Katlı Kapsül Ev H11

Core Structural Specifications

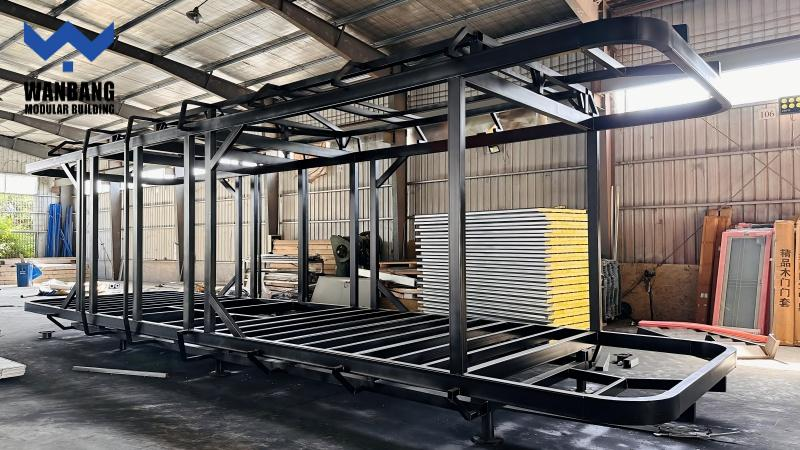

Heavy-Duty Steel Framework

• Primary load-bearing: 150×100×3mm steel beams (Q345 tensile strength).
• Floor system: reinforced concrete composite slabs (live load: 3.5 kN/m²).
• Corrosion protection: hot-dip galvanized secondary beams (100×50×1.8mm).

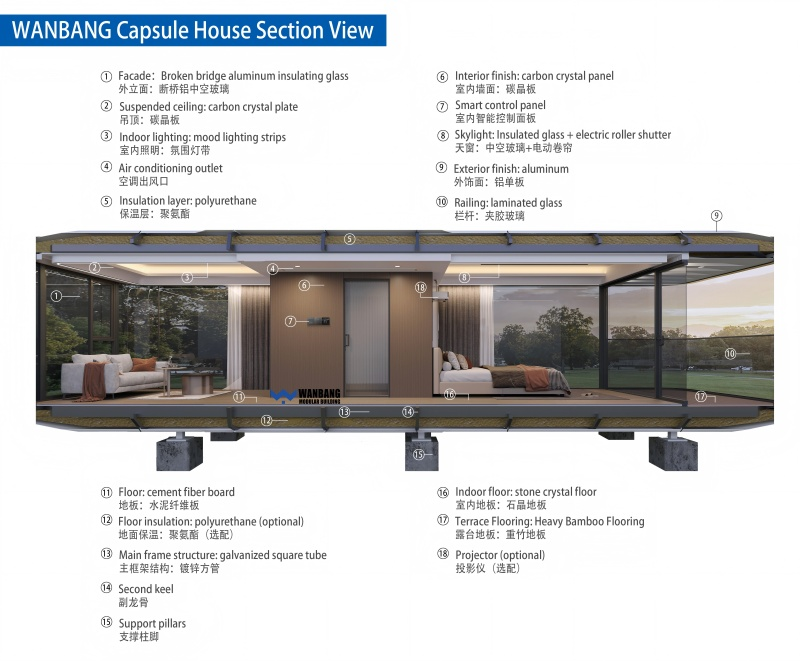

Certified Envelope System

• Exterior: 2.5mm formed aluminum panels (87.8m² wind-resistant surface) + 6+12A+6mm LOW-E glazing (29m², U-value 1.2 W/m²K).
• Insulation: 150mm polyurethane injection (75m² coverage, K-value 0.022 W/mK).

Vertical Circulation

• Spiral staircase: EN 1090-2 certified steel structure. (EN 1090-2 to be confirmed for this product line.)
• Optional accessible lift: 800kg capacity with emergency power backup.

Smart System Integration

• Climate control: dual Midea AC (1.5P upper + 2P lower floor) with app scheduling.
• Lighting: motion-sensing LED strips (32.5m² coverage, ≤8W/m²) + dimmable downlights.
• Security: 3-in-1 smart lock (RFID / biometric / app) + 1080p cameras with night vision.
• Energy: pre-installed conduits for 5kW rooftop solar + V2G compatibility.

Space-Optimized Layout

Ground Floor (38m²)

• Wet-separated bathroom: sliding aluminum door + 60L Midea water heater (rapid heat-up).
• Kitchenette: retractable quartz countertop with induction cooktop.

Upper Floor (38m²)

• Bedroom: king-size loft bed with underfloor storage (load: 300kg).
• Office: fold-down desk integrated into guardrail.

Deployment Packages

Premium Tourism Edition

• 6+6mm tempered glass balcony (5.7m length).
• Whirlpool-ready plumbing ports (IP65 outdoor sockets).

Senior Living Edition

• Stairlift rails embedded in steps.
• Radar fall detection system.

Global Compliance & Testing

• Certifications: CE, EN 13501-1 (Class A fire rating), ISO 14064 carbon audit.
• Environmental tests: operational range tested from -30°C to +50°C; wind load 150 km/h (coastal exposure simulation).

Note: per the compliance whitelist, primary certifications are ISO 9001 / ISO 14001 / CE. EN 13501-1 and ISO 14064 shown above are to be confirmed for this product line.

Frequently Asked Questions

• Q: What is the minimum order quantity (MOQ) per shipment?
  A: 1 unit. You may order single units.
• Q: What is the production lead time for bulk orders?
  A: Approximately 7–15 days after deposit confirmation.
• Q: Can you customize designs based on our layout?
  A: Yes. We fully customize products according to your layout specifications.
• Q: What are your payment terms?
  A: Standard terms: 50% deposit upfront, and 50% balance before shipment (via T/T).

Request an H11 Capsule House Quotation

Tell us your scenario (high-density resort or senior living), target area and configuration, and we will return a quote with full specifications.
